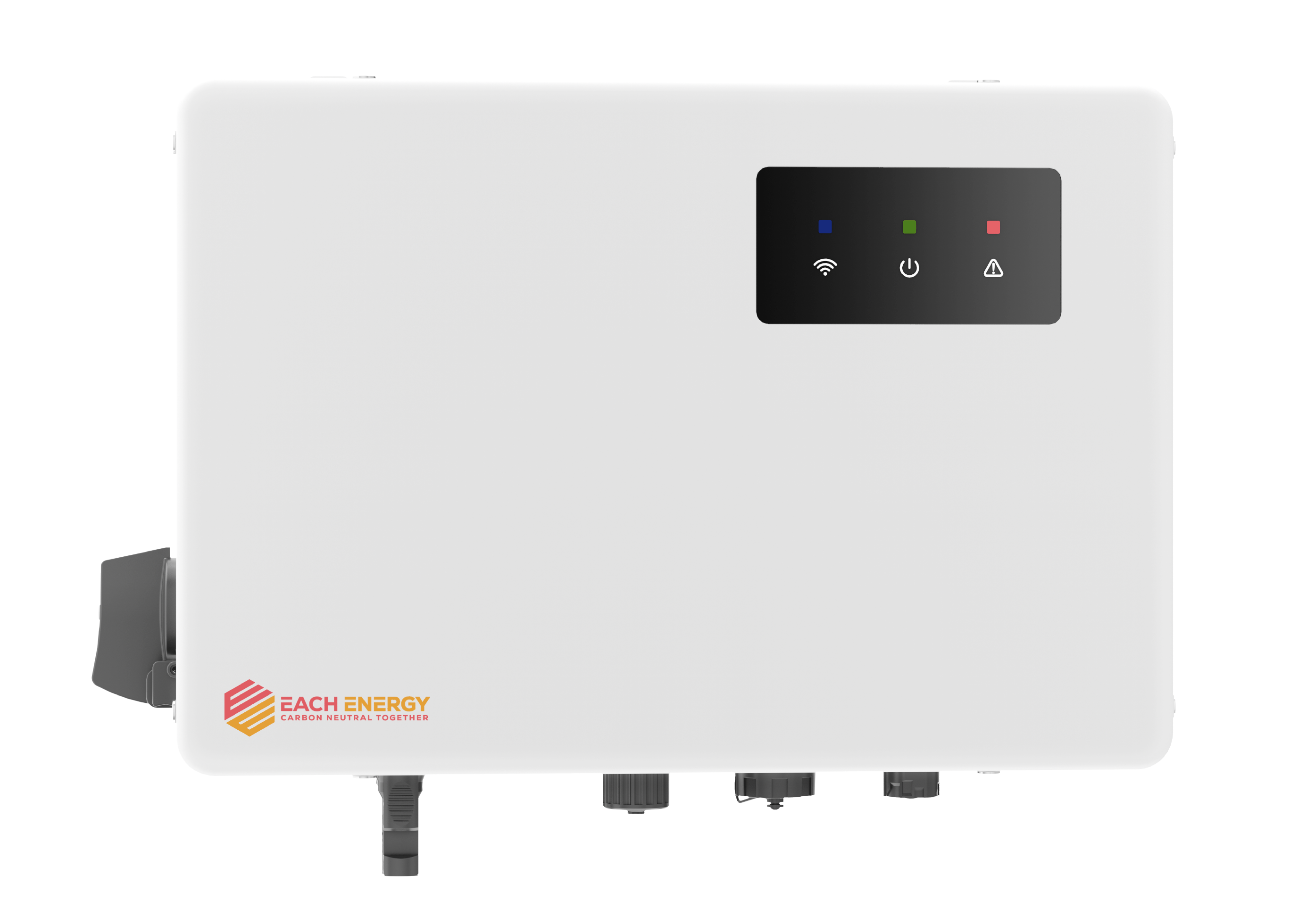

MEES0.6K/0.7K/0.8K/1K/
1.5K/2K/3K/3.6K/4K-M1
Single Phase On-grid Inverter
HIGHER YIELD
• 98.6% max efficiency • 98.1% EU effciency
HIGHER QUALITY
• Components supplied by leading manufacturers • IP 66 ingress protection • Dissipating heat efficiently, uvioresistant, corrosion resistant
COMPATIBILITY
• Wide range of AC output voltage, compatible with electrical grids of Europe, South America, North America, Asia Pacific, Australia, Africa and etc
• String current up to 18 A
SAFETY
• Ground fault monitoring • 10 year standard warranty • Thunder-proof and low radiance
COMMUNICATIONS
• Wifi, 4G, GPRS, Bluetooth, RS485 • Remote monitoring
EASY TO USE
• 6Kg, smaller size, easy to install • Work overload or underload when needed • No fan, noiseless
DOWNLOADS

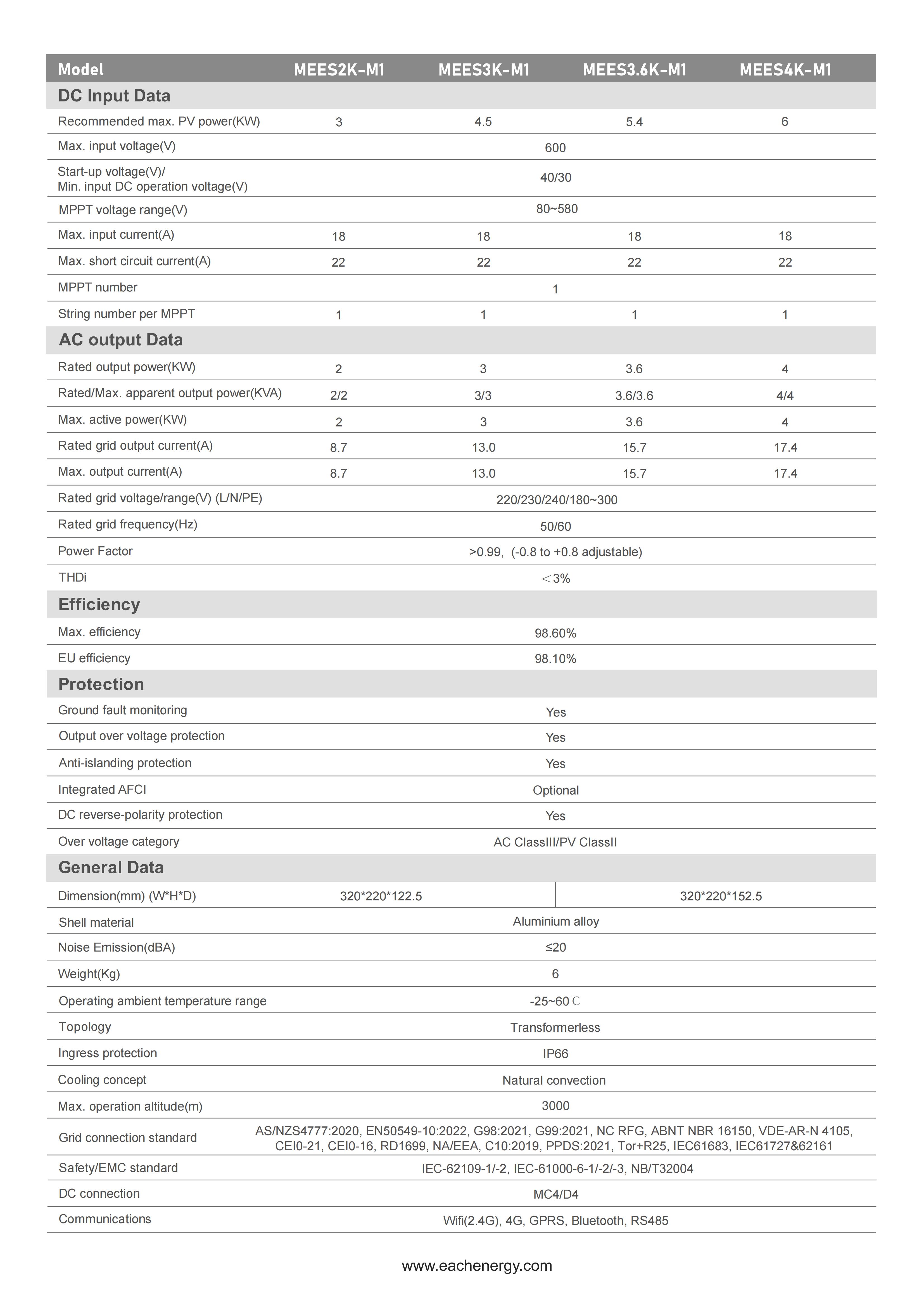

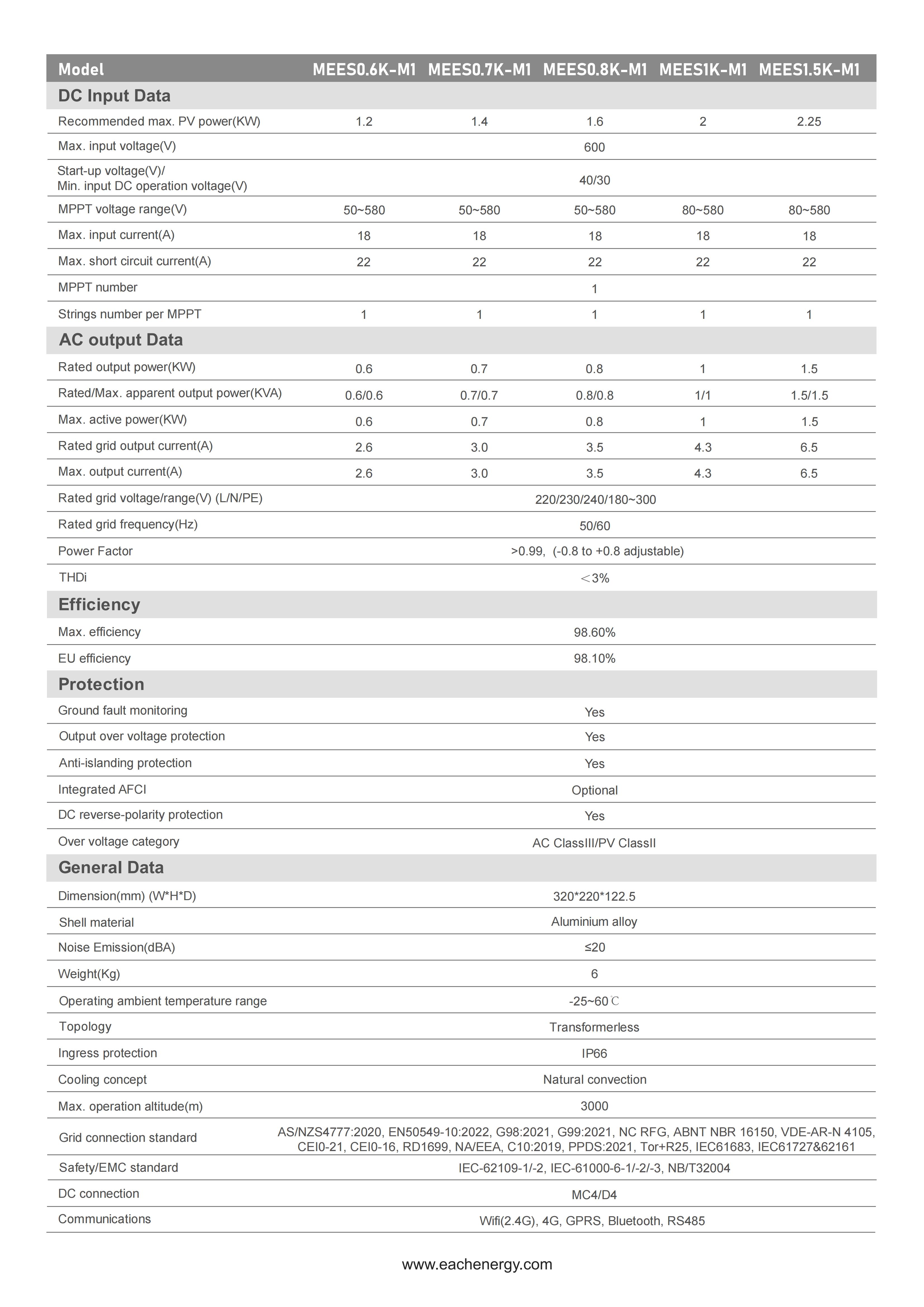

TECHNICAL SPECIFICATIONS
