HT25K/30K/40K/50K-M1
AC Couple Three Phase HV Hybrid Inverter

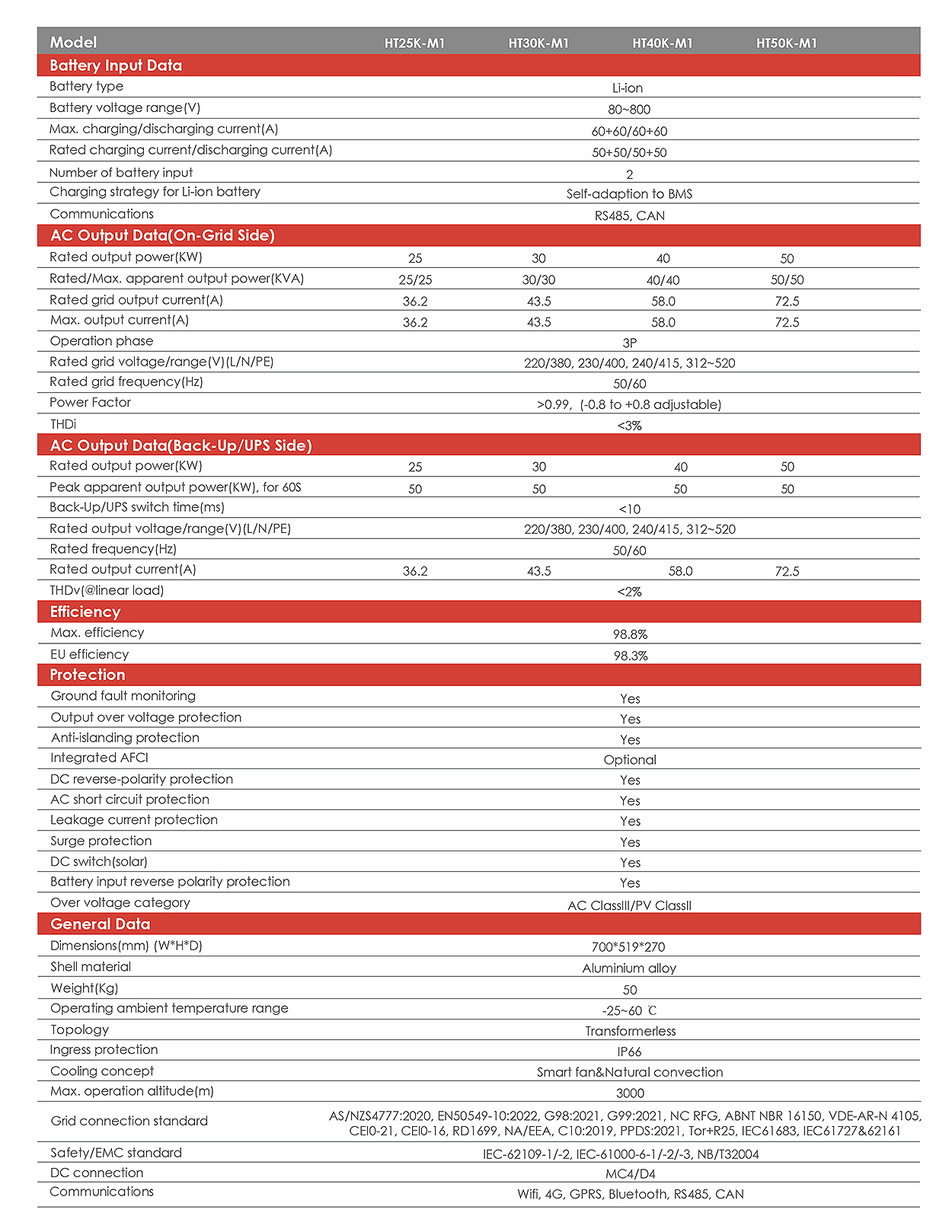

TECHNICAL SPECIFICATIONS
COMPATIBILITY
• Wide battery voltage range 80-800 V • Compatible with lithium batteries, offering more choice for different markets
FLEXIBILITY
• 50A/60A charging and discharging current, suitable to high voltage batteries
EFFICIENCY
• Max. efficiency:98.8%
• MPPT efficiency:99.9%
PERFORMANCE
• UPS level automatic switch in ＜10ms • Premium grid peak shaving capabilities, friendly to grid
• 100% full load charge and discharge
• Max. 200% back-up output overloading @60S
• Parallel operation capacity with max. 4 units
INTELLIGENT SYSTEM
• Intelligent EMS function, improving battery’s reliability • Settable charge and discharge time
• Longevity and almost no derating at high temperature
• IP66 protection degree
EASY TO USE
• Plug and play installation • Easy to monitoring, supporting remote control
